Hydraulic shock absorbers play an indispensable role in oilfield operations, particularly in drilling, completion, and workover processes. These tools are engineered to absorb and dissipate the powerful shocks and vibrations generated deep within the wellbore. Such impacts can arise from sudden weight drops, pipe stretch, formation changes, or operational mishaps. Without effective shock absorption, these forces risk damaging sensitive and costly downhole equipment, causing failures, unplanned downtime, and significant economic loss. Hydraulic shock absorbers help maintain the integrity of the drill string and other tools, improving operational stability, safety, and efficiency. Their use is standard in modern oilfield equipment configurations due to their proven benefits under harsh and complex well conditions.

Basic Function of a Hydraulic Shock Absorber

In oilfield applications, a hydraulic shock absorber functions as a vital protective device that buffers shocks and vibrations transmitted through the drill string and associated tools. During drilling or well intervention, the drill string is constantly subjected to dynamic loads and impact forces, such as those caused by:

Sudden changes in formation hardness or pressure zones.

Rapid changes in the drill bit's contact force with the rock.

Jarring or bouncing caused by the rotation and vertical movement of the string.

Operational events like tool drops or collisions inside the well.

These abrupt forces, if left unchecked, can induce stress concentrations, fatigue, and premature failure of the drill bit, downhole sensors, mud motors, measurement tools, and other critical components. The hydraulic shock absorber's main job is to smooth out these impact loads, reducing peak forces by converting kinetic energy into hydraulic resistance and heat. This controlled energy dissipation preserves the lifespan of expensive drilling tools, reduces the frequency of failures, and maintains a more stable drilling environment.

By lessening vibration and shock, hydraulic shock absorbers also improve data quality from downhole sensors, enabling better decision-making during drilling and logging operations. A more stable drill string translates into improved rate of penetration (ROP), reduced non-productive time (NPT), and enhanced overall wellbore quality.

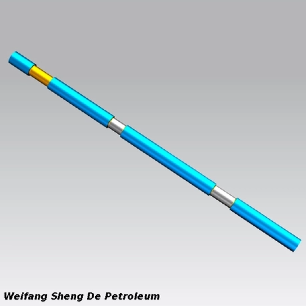

Key Components and Structure

The effectiveness of a hydraulic shock absorber relies on the precise engineering of its internal components, designed to function reliably under high pressure, temperature, and mechanical stress conditions found thousands of meters underground. The core components include:

• Outer Shell and Pressure Housing: This robust cylindrical casing is typically made from high-strength steel alloys or other durable materials. It must withstand harsh mechanical stresses, corrosion, and the extreme pressures exerted by the surrounding formation fluids. The outer shell protects internal parts and provides a secure interface with the drill string.

• Piston and Guide Assembly: The piston moves axially within the pressure housing. Its smooth, guided movement is essential for consistent shock absorption. The piston's diameter, stroke length, and surface finish are carefully designed to control the flow of hydraulic fluid and maintain the absorber's damping characteristics.

• Hydraulic Chamber and Fluid: Inside the housing, the piston divides the cavity into hydraulic chambers filled with specially formulated hydraulic oil. This oil acts as the working fluid, transmitting pressure and dissipating energy. The fluid's viscosity and flow characteristics under various temperatures directly influence the absorber's response.

• Seals and Dust Protection Systems: High-quality seals prevent hydraulic fluid from leaking and block contaminants from entering the system. Seal materials must endure temperature fluctuations, chemical exposure, and mechanical wear without degradation. Dust or debris exclusion systems ensure longevity and reliability in abrasive downhole environments.

• Valve Systems (in some designs): Some hydraulic shock absorbers incorporate adjustable or fixed valves that regulate fluid flow during piston movement, offering tunable damping for specific operational requirements.

Working Principle

Hydraulic shock absorbers operate by converting kinetic energy from shocks and vibrations into heat energy through fluid flow resistance. The process involves several key phenomena:

• Shock or Vibration Occurs: When the drill string encounters an impact or rapid acceleration, the hydraulic shock absorber's piston is forced to move within the housing.

• Fluid Flow Through Restrictions: As the piston moves, hydraulic fluid inside the chambers is forced through narrow orifices, ports, or valves. This fluid flow is restricted, creating viscous resistance that dampens piston motion.

• Energy Absorption: The resistance to fluid flow absorbs the piston's kinetic energy, slowing down the impact force transmitted through the tool. The absorbed energy is converted into heat, which dissipates into the fluid and the surrounding structure.

• Pressure Fluctuation and Return: Pressure rises in the hydraulic chambers during piston movement and drops when the piston returns. This cyclical pressure change helps smooth out repetitive shocks.

• There are two main energy absorption types based on design:

• Bidirectional Absorption: Absorbs shocks and vibrations from both upward and downward movements of the drill string. This type is preferred in complex wells with variable load directions, as it provides balanced protection.

• Unidirectional Absorption: Primarily absorbs shock in one direction (typically downward or upward). This simpler design is suitable for scenarios where impact forces mainly occur along a single axis.

Step-by-Step Operation Process

Understanding how a hydraulic shock absorber works during operation involves several sequential steps:

• Installation in Drill String: The shock absorber is installed at a strategic location within the drill string assembly, often near the drill bit or sensitive tools requiring protection. Proper positioning ensures it intercepts shocks effectively.

• Impact or Vibration Encountered: As drilling proceeds, the drill string may suddenly encounter an obstruction, or variations in rock hardness generate shock waves. The impact force travels along the drill string to the shock absorber.

• Piston Movement and Oil Flow: The piston inside the shock absorber moves relative to the housing due to the transmitted force. Hydraulic fluid is forced through the flow restrictions or valves, creating damping resistance.

• Energy Dissipation: The hydraulic fluid's viscous resistance absorbs the energy of the shock, converting it into heat, thereby reducing the force transmitted further up the drill string.

• Automatic Reset: After the shock, internal springs, fluid pressure balance, or gravity causes the piston to return to its original position, ready for the next impact. This reset mechanism enables continuous operation without manual intervention.

• Continuous Protection: Throughout drilling, the shock absorber continuously buffers vibrations and shocks, maintaining stable operation.

Benefits in Oilfield Applications

Hydraulic shock absorbers deliver multiple advantages across a range of oilfield activities:

• Extended Tool Life: By absorbing damaging shocks, these devices reduce wear and mechanical fatigue on drill bits, stabilizers, mud motors, sensors, and other downhole tools, increasing their operational lifespan.

• Reduced Equipment Failures: Less frequent tool failures mean fewer trips out of the hole and less unplanned downtime, saving considerable operational costs.

• Enhanced Drilling Efficiency: Smoother drilling dynamics improve rate of penetration (ROP), reduce stuck pipe incidents, and improve borehole quality, resulting in faster, more cost-effective well construction.

• Improved Safety: Protecting critical components from sudden failure reduces risks to personnel and equipment, promoting safer drilling environments.

• Better Data Quality: Minimizing vibrations helps ensure accurate readings from measurement-while-drilling (MWD) and logging-while-drilling (LWD) tools, enabling more informed drilling decisions.

Maintenance Tips

Maintaining hydraulic shock absorbers is essential for optimal performance and reliability:

• Hydraulic Oil Management: Regularly check the condition of the hydraulic fluid for contamination or viscosity changes. Replace or top up oil as recommended by the manufacturer to maintain proper damping characteristics.

• Seal and Piston Inspection: Periodically inspect seals and pistons for signs of wear, damage, or leakage. Prompt replacement prevents loss of hydraulic fluid and ensures consistent damping.

• Pressure and Functional Testing: Conduct scheduled pressure and function tests to verify the shock absorber's responsiveness and detect potential failures before they affect operations.

• Cleanliness: Maintain cleanliness during handling and installation to prevent debris ingress, which can damage internal components.

Conclusion

Hydraulic shock absorbers are essential in modern oilfield operations, protecting critical downhole tools from the severe shocks and vibrations encountered during drilling, completion, and workover tasks. Their advanced fluid-based damping systems effectively absorb and dissipate energy, enhancing tool longevity, improving drilling stability, and lowering operational costs. As drilling conditions grow increasingly challenging, innovations in hydraulic shock absorber technology continue to boost their performance, reliability, and versatility. Choosing, installing, and maintaining the right shock absorbers is crucial for maximizing these benefits and ensuring safer, more efficient operations.
